NEW! The TransDoctor Electronic transmission Shifter POD.

At Automotive Diagnostics & Publishing we engage is the research & development of test equipment. We are the only company that develops diagnostic equipment from a technical/repair perspective. We realize that most "Tool & Equipment" companies carry lots of overpriced equipment. Our company was founded by an auto-tech, so we know what you go through in purchasing the right tools. We fully develop and extensively test our products before giving it our stamp of approval. So what you need is what you get, at an affordable price.

Future scan tool software solutions will include the functionality and application of technology that will help identify what's wrong with your vehicle and not just give you data-stream and codes. The idea is to have a fully integrated diagnostic, information and invoicing system that'll help repair shops pin-point the problem, log it and generate the appropriate invoice for the repair shop. This is what we call a fully digitally integrated repair shop. The advantage is fast vehicle repair turnaround and customer satisfaction.

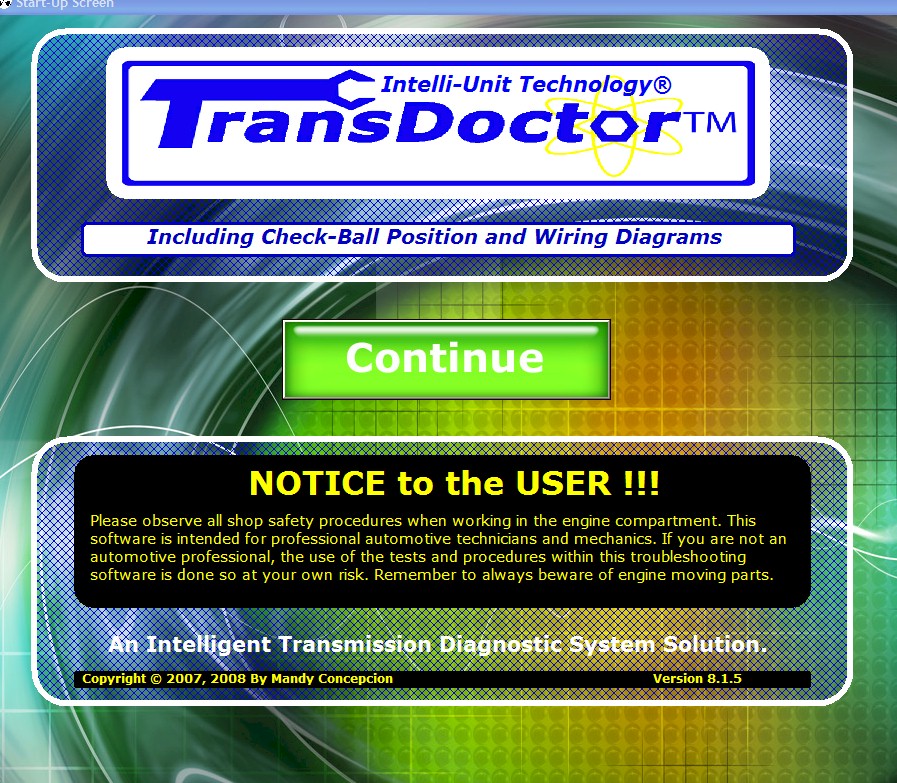

The TransDoctor POD (with Intelli-Unit Technology®)



The TransDoctor POD

(with Intelli-Unit Technology®) and includes a Universal Cable Set for all transmissions.

The TransDoctor is a complete PC based automated transmission shifting device as well as a full transmission solenoid electronic break-out box. The unit allows the technician to perform in-depth diagnostics on all modern electronically controlled transmission. By utilizing the power of a modern PC or Laptop the tech is able to shift the transmission, on NON-Shifting units, and verify if the problem is hydraulic or electrical. If the TransDoctor is able to manually shift the unit, then you know the problem is not in the hydraulics or hard parts. So you'll have to concentrate on the electronic sensors, TCM/PCM or wiring harness. Here too the TransDoctor is able to verify the entire electrical operation and function of each unit. Employing extensive use of computer CHARTING and GRAPHING, as well as "Intelli-Unit Technology", you'll be able to see all shift solenoids, pressure solenoids, and switches in operation and perform a series of automated tests on them. The unit is fully automated so it'll automatically detect any OPEN or SHORTED electrical component, with the click of a button. The TransDoctor will also have an extensive database of transmission related information, within the actual software itself. Basically the entire Transmission Troubleshooter software, found in this site is included with the TransDoctor.

With all this amount of features and gadgetry you're probably asking yourself, how difficult it must be to use? Not at all. It's all automated and ready for you to simply click a button. The TransDoctor has an entire battery of transmission specific connectors, so that you're always ready to test these units. Coverage includes most of the modern electronically controlled transmissions on the market now. Worried about the future? don't despair, this unit will never be obsolete. All you do is update the computer software and you're done. These software updates will be reasonably priced. That's a promise.

The TransDoctor has 5 diagnostic sections, with other subsections. PLUS the Transmission Troubleshooter software is also built-in. The unit also comes bundled with a Universal Cable Set and Impedance Adapter, this way you may use it right out of the box on any modern transmission. Dedicated cables are also offered and sold separately. The five sections are:

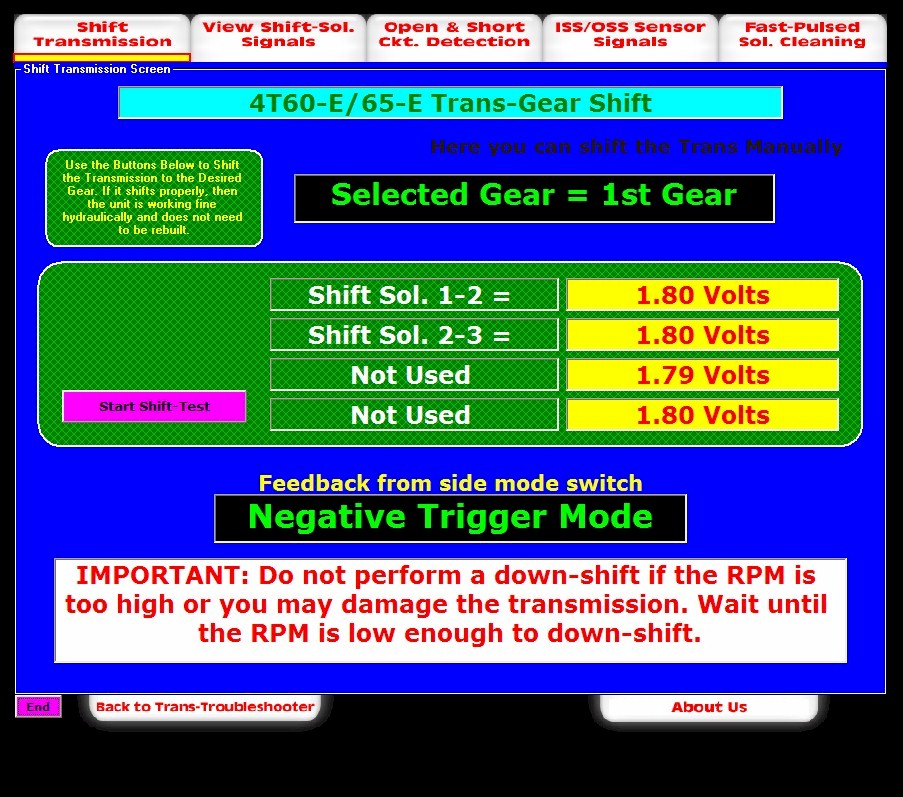

Transmission Specific automatic shifting lets you shift the transmission by pressing Up-Shift and Down-Shift buttons. The whole section is fully automated and adapts to the specific transmission that you're working on. Included in this section is a solenoid digital feedback voltage readout for each solenoid, letting you know right away if the wires are broken.

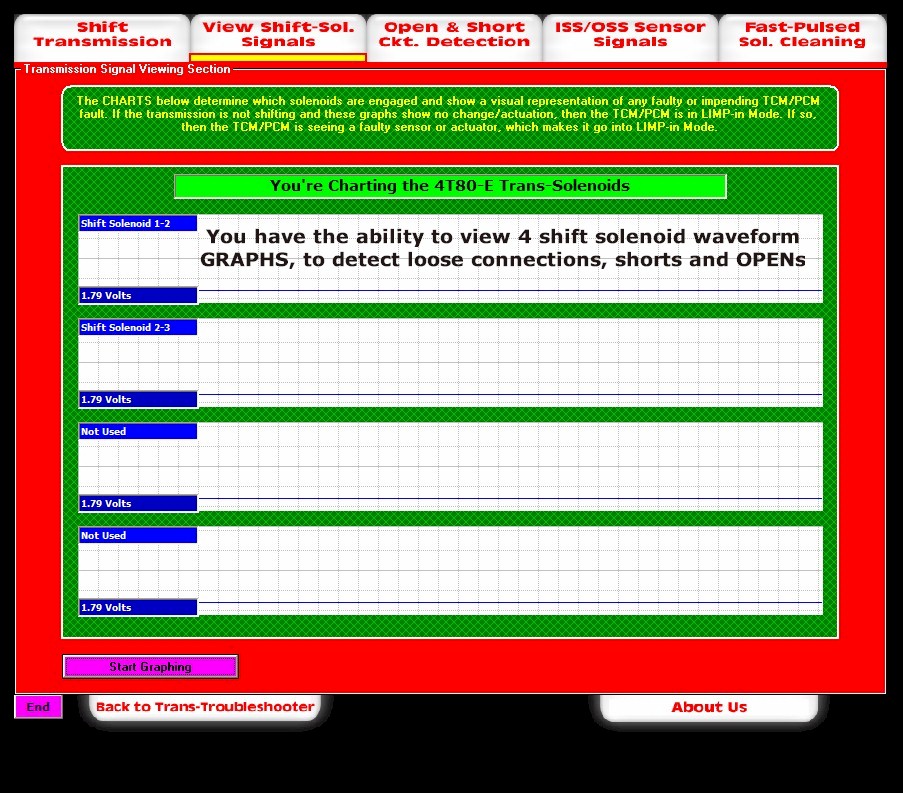

Full fledged voltage waveform feedback readout, with digital readout as well. Use the power of the PC to its fullest. This section gives a quadruple voltage graphing multimeter chart of the solenoid feedback voltage. The scope-like charts are fully automated. No setting is necessary and they adapt to the specific transmission that you have.

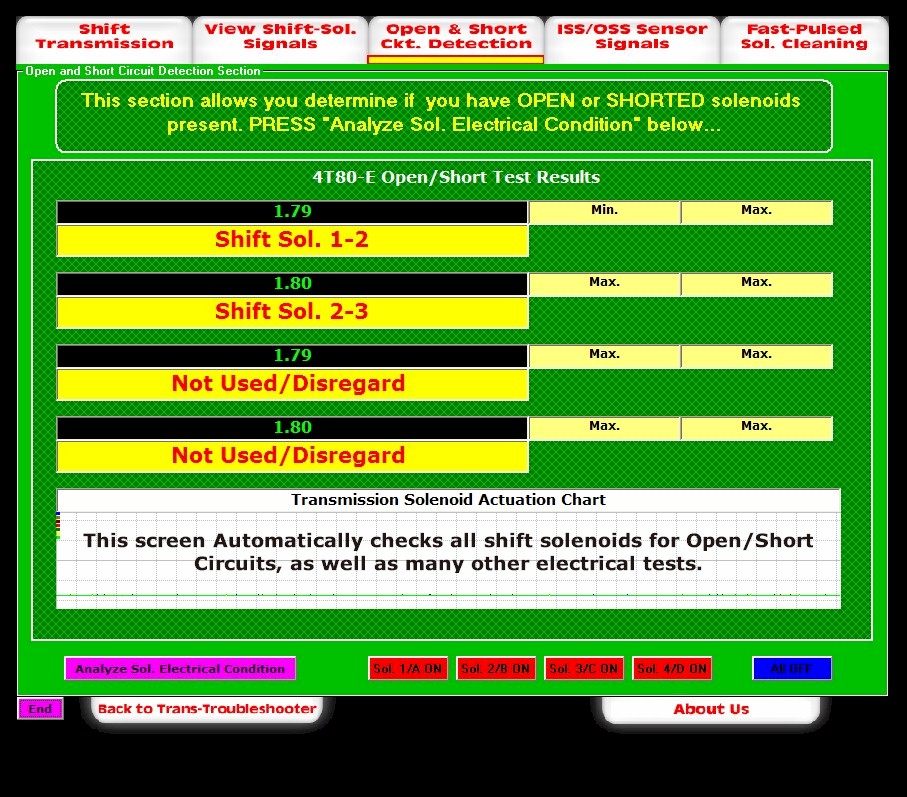

Completely automated open and short finding section. That's right!!! In this section simply press a button and the TransDoctor performs a fully automated test of all shift solenoids. The unit will actually shift each solenoid, measure, record and analyze the voltage output. It then gives the result as in an OPEN/SHORT or pass/fail, as well as the min. and max. voltage levels. Within this section you can also manually shift each solenoid for an extended period of time. This feature allows the tech to stress each solenoids and allow a possible intermittent problem to surface.

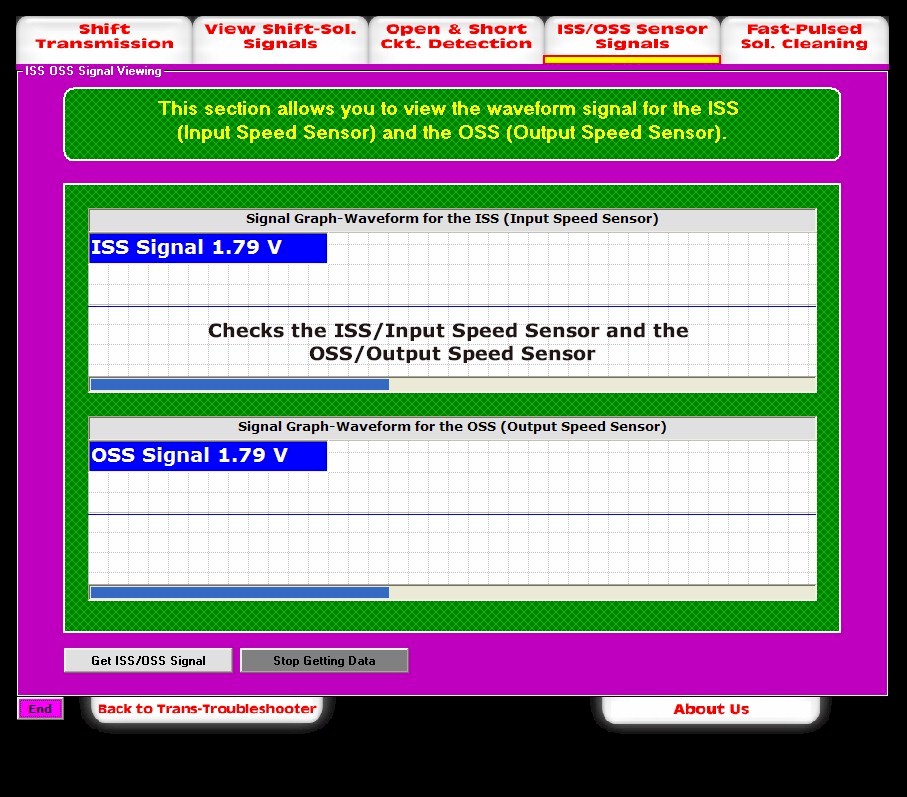

ISS and OSS graphing chart section allows the tech to simply connect and view the Input Speed and Output Speed Sensor signal, without any hassle at all. The two ISS/OSS voltage graphing charts are fully automated.

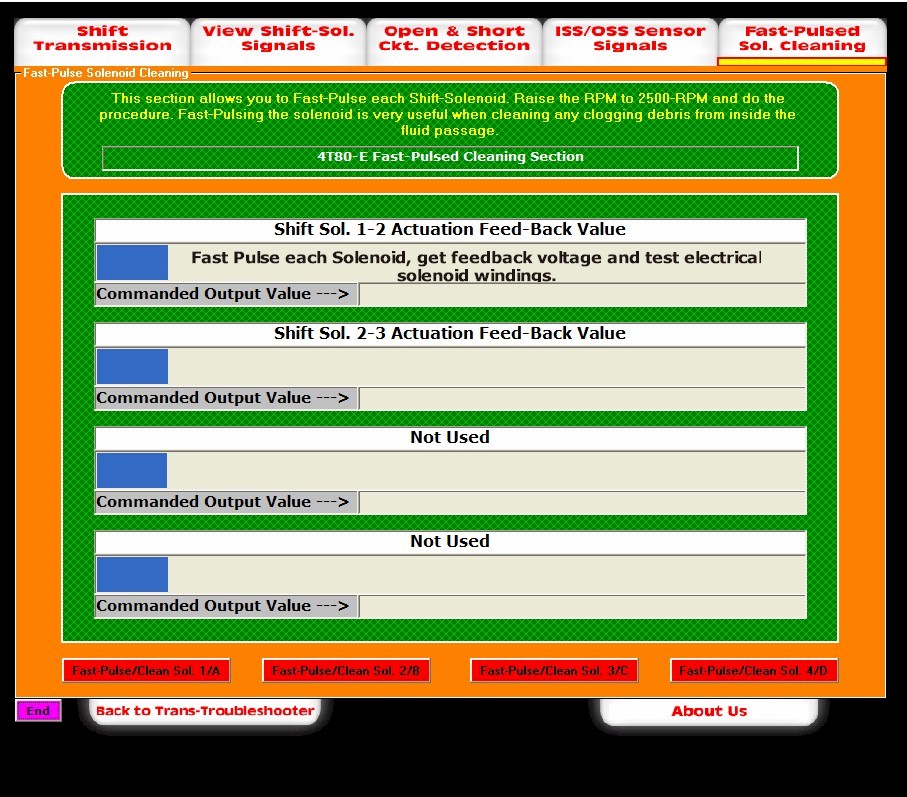

The 5th section is a fast pulse cleaning section. This section allows the technician to fast pulse each solenoid, while increasing to 2500 or so RPM. The combination of high pressure and high solenoid actuation rate often times forces dirt and debris out of the solenoid fluid passage. This section also serves to stress out the solenoid and allow the problem to surface.

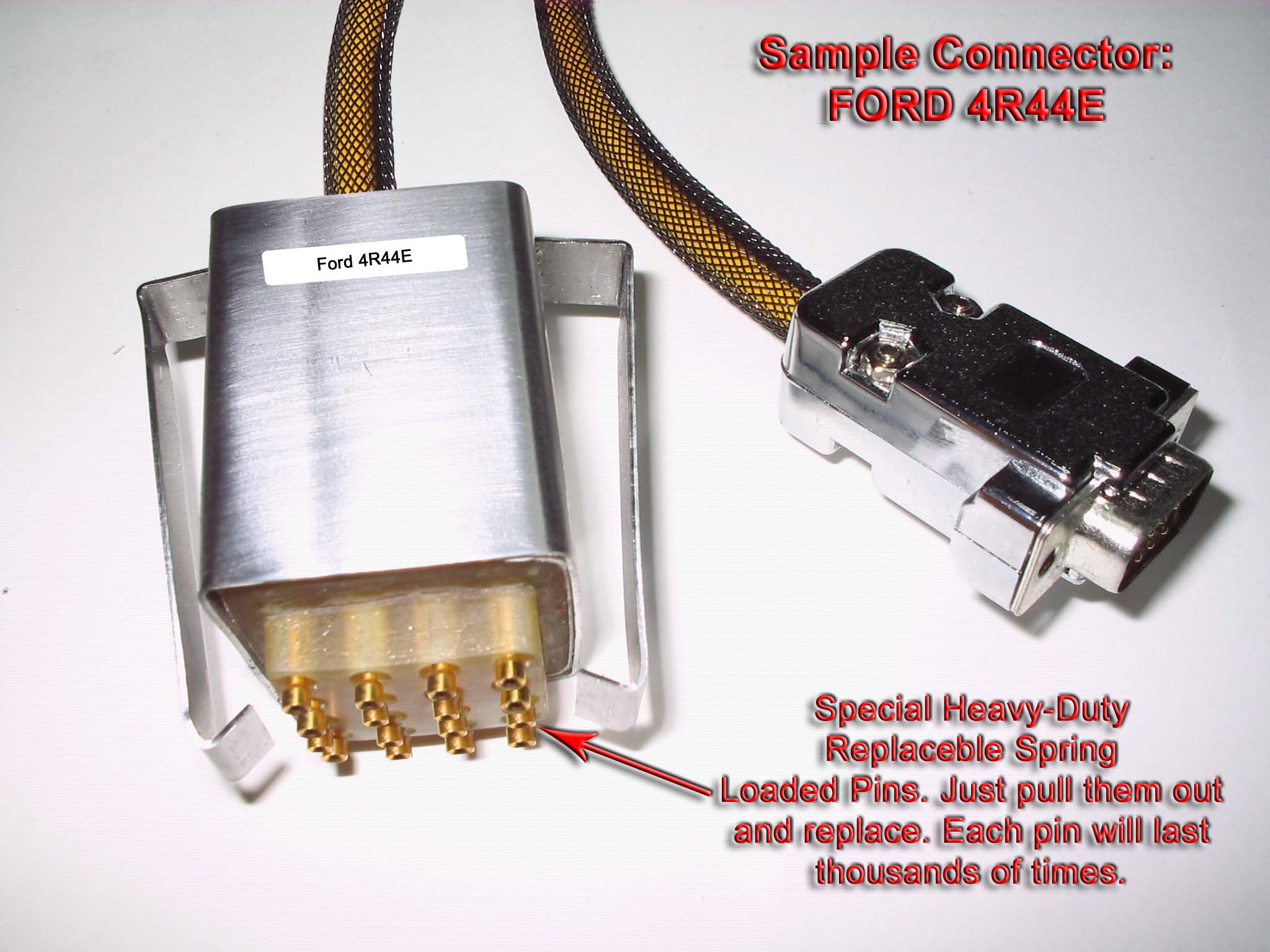

All this features plus a huge wealth of information found in its internal database (Transmission Troubleshooter included). The software allows you to go back and fourth between information database and electronically test the transmission until the problem is found, the intermittent component is made to fails, or the broken wire/circuit is detected and repaired. The TransDoctor comes with a universal cable set and adapter. Each transmission specific cable can be ordered separately. IMPORTANT: We can custom make any cable and software module if needed. Our products are the only ones on the market whereby you deal directly with the software developer and tool designer. If you work on odd or rare electronic transmissions, we can custom make any cables and create an add-on software module as per your specification. It's that simple. All custom made software modules and cables have to be pre-paid and may take up to 4 weeks for delivery. With this amount of features and the ability to order custom made modules, you'll never go wrong.

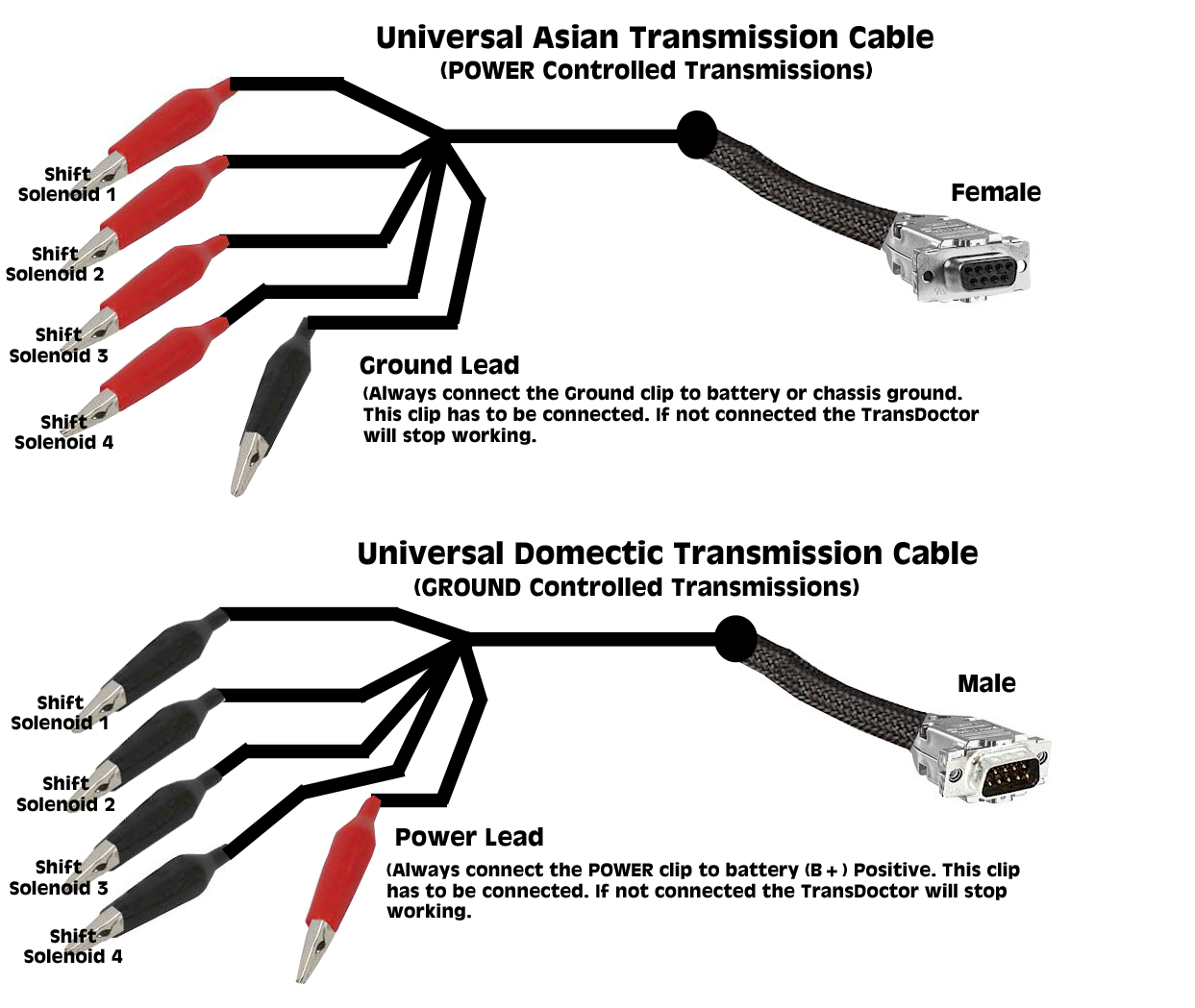

NOTE: The TransDoctor comes with a "Universal Cable SET" and the IMP-1000-Impedance Match Adapter box. The IMP-1000 is made to be able to match any transmission type to the TransDoctor. The IMP-1000 adapter bundled with the universal cable set guarantees that the TransDoctor will be fully compatible will all modern transmissions and it's included.

Download the available cable list and the IMP-1000 (Impedance Match Adapter) box user's manual here.

Order a FREE-TransDoctor User's DVD (just pay S/H) ----> Order FREE TransDoctor DVD

TransDoctor Now Selling $899.00 ---->        BUY NOW          MSRP $1299.00

Get the TRIPLE-PACK Now (ADPScan-1/ADPScope-1/TransDoctor) $1699.00 ---->   BUY NOW    You Save $698.00 (Big!!!) Get all 3 units for a fantastic price. Remember, you get the ADPScan-1 Pro (USB) to perform all ECM and PCM communications. This is the window into whatever the vehicle's computer is seeing. You get the ADPScope-1 Pro to perform all sorts of manual measurements on sensors and actuators. And, you get the TransDoctor for transmission specific repairs. The TransDoctor connects directly to the transmission, and acts like a transmission shifter/computer. Read the ECM/PCM, measure your electrical components, and use the TransDoctor for transmission specific diagnostics. A Complete Package.

The Unit above includes the universal cable set and IMP-1000 (Impedance Match Adapter), which is all you'll need to tap directly into the transmission wiring harness either at the trans-connector or the TCM itself.

System requirements: Windows XP or Windows Vista. Pentium-4 or above microprocessor. Runs on almost any PC or Laptop built within the last 7 years.
