OBD2 Scanner Simulator Trainer Software

OBD2 Scanner or Scan Tool Simulator Software is a PC Laptop Based software program made to tech and train you in using a scan tool. Composed of 3 parts, a component, scanner and engine section allowing you to simulate the operation of different sensors and actuators. Simulate almost any PID parameter on the engine. Plus also simulate other sensors and see how they relate on the component simulator that also shows you waveforms. Become an expert at using auto repair and diagnostic tools.


(Click Image or link to get the software now...)

OBD-2 Scanner Simulator
                    Software

Click to get information on the OBD2 Simulator Trainer Software




What is the OBD-2 Scanner Simulator Trainer


The OBD-2 Scanner Simulator Trainer is a unique PC/Laptop based software that'll train you in a variety of auto-repair issues. Not only is a great tool for the student/instructor, but also or the season mechanic.

Now, what is the OBD-2 Scanner Simulator Trainer Software Download?

The software is composed of three parts:

1) A full fledged OBD-2 Scanner, based on our long standing Scan-1 System.

2) An Engine Simulator window sections, with a series of PID-Parameters/Sensor/Actuator sliders. This section allows you to change the engine data-stream as you please, while being reflected on the OBD-2 Scanner part. This section also has a wide variety of "FAULTs" pre-programmed into it, such as Lean/Rich Condition, MAF Sensor Fault, MAP fault, Clogged Exhaust, Clogged EGR, ECT code, O2 sensor fault, and much more. The idea is to teach you how these issues reflect on the Scan values and the engine itself.

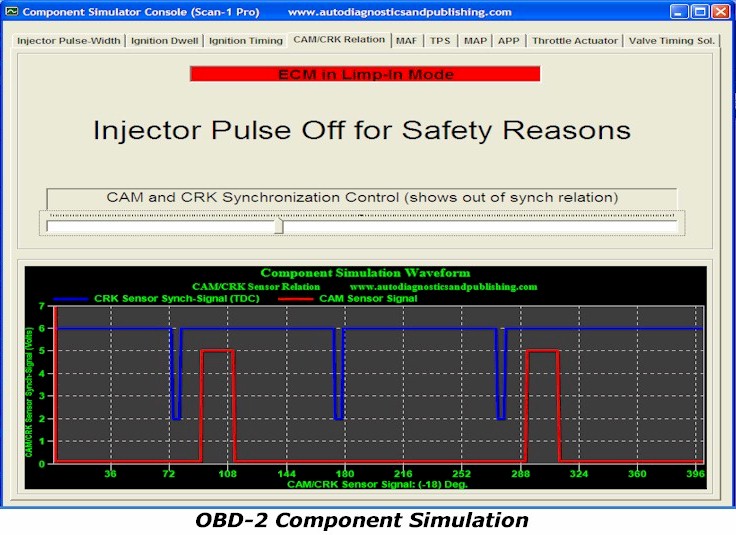

3) A Component Simulator window section that shows you how whatever you do with the Engine Simulator, reflects on the signal waveform and scanner. The Component Simulator is also loaded with a bunch of sensors and actuators.

The whole 3 sections are totally interconnected, so that whatever you do with the Engine Simulator reflects on the Scanner and Component Simulators as well. Once in the software, you can retrieve the datastream, as you would with a regular car, and see it all on the Engine-Component-Scanner simulator screens. Change one PID, and then see how the rest of the other PIDs also change.

There's a lot of built-in intelligence behind the OBD-2 Scanner Simulator Trainer, such as that it behaves like a true automobile. And whatever you do in one Simulator screen, the effects are seen throughout the entire datastream. This is the only OBD-2 Simulator Trainer on the market today.

Note: Just so that you know, this software doesn't communicate with the car's ECM (computer). This is a complete training software. The unit runs on Windows XP. Vista, 7 & 8 Pro.



See the following software "Screen Captures"

Click on image to enlarge...

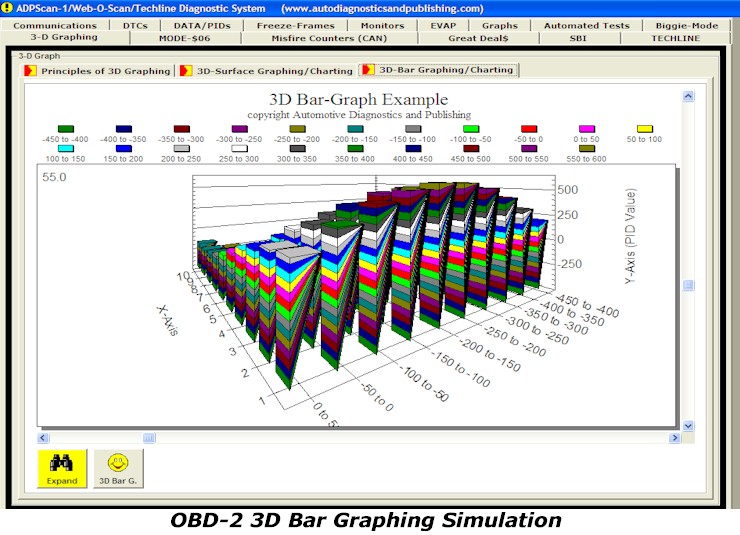

obd2_3D_bar_graphing_screenshot

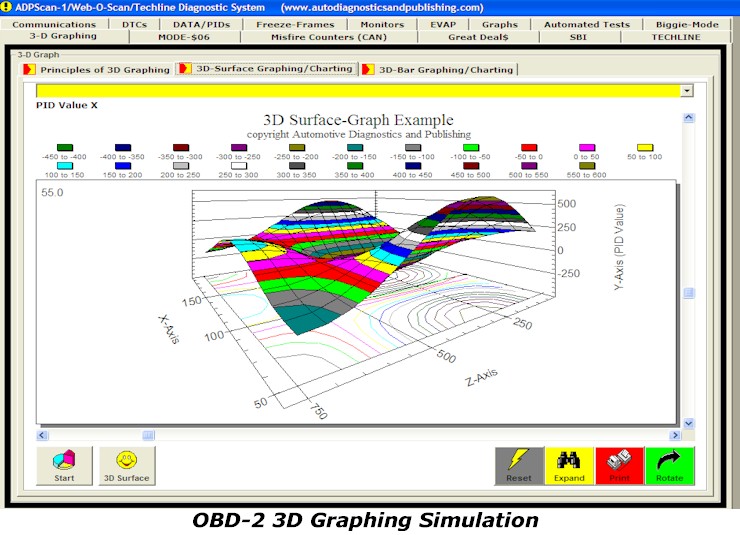

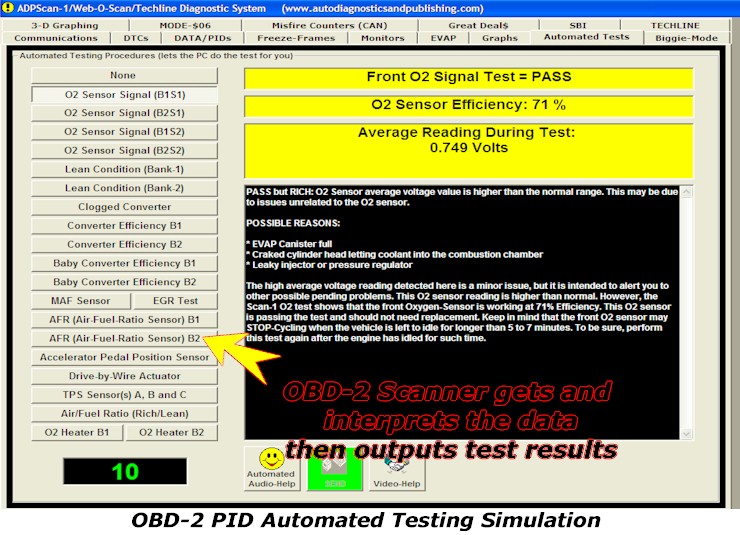

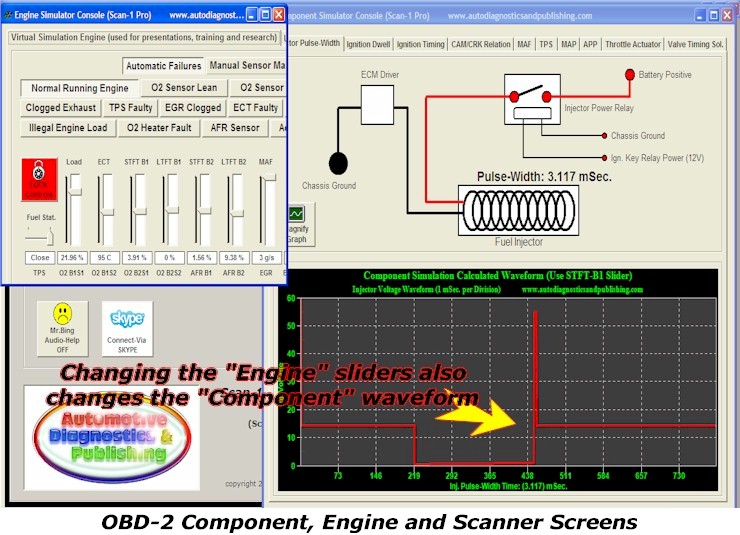

  obd2_3D_graphing_screenshotobd2_automated_testing_screenshotobd2_component_screenshotobd2_component_waveform_screenshot

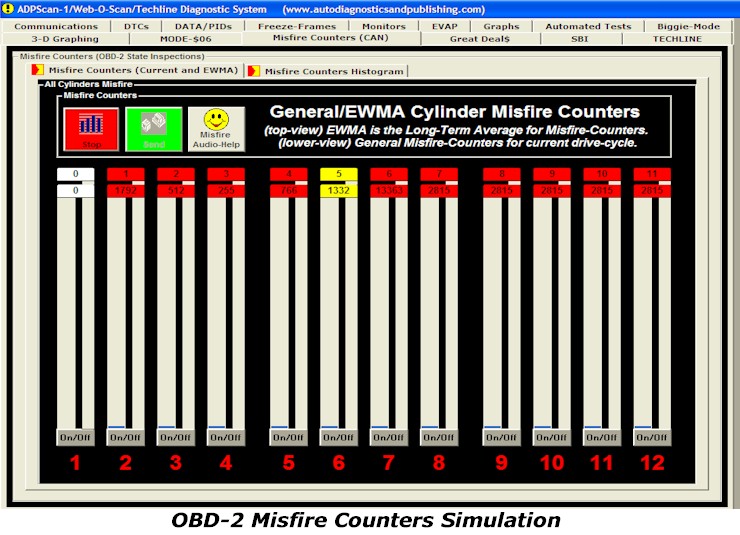

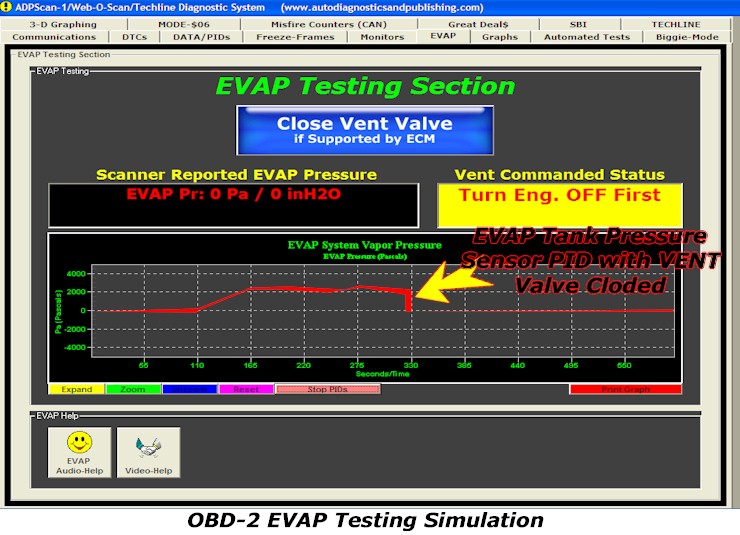

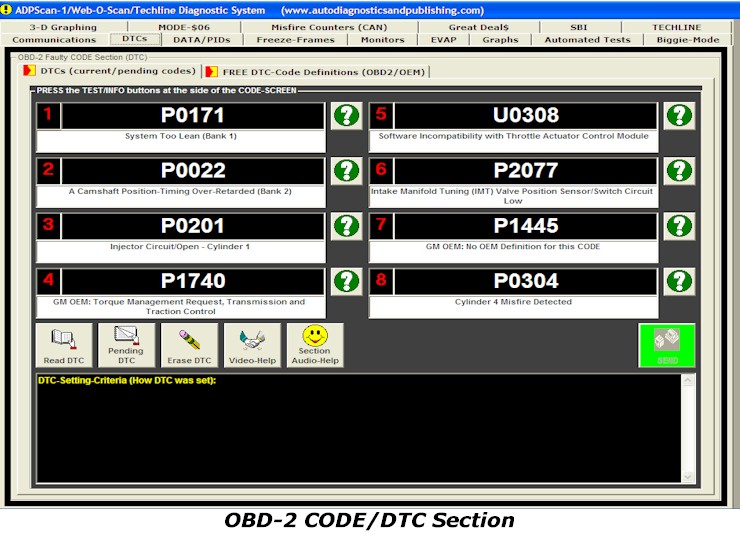

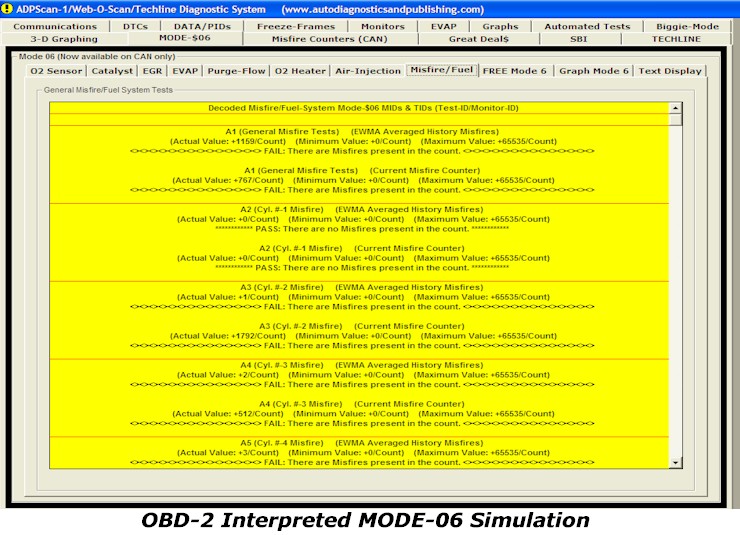

obd2_DTC_scanner_screenshotobd2_engine_screenshotobd2_EVAP_Test_screenshotobd2_misfire_counters_screenshotobd2_mode_06_screenshot

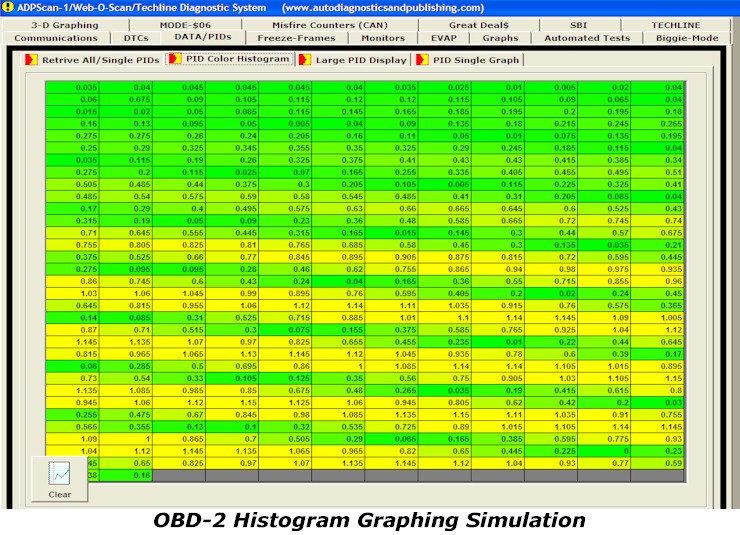

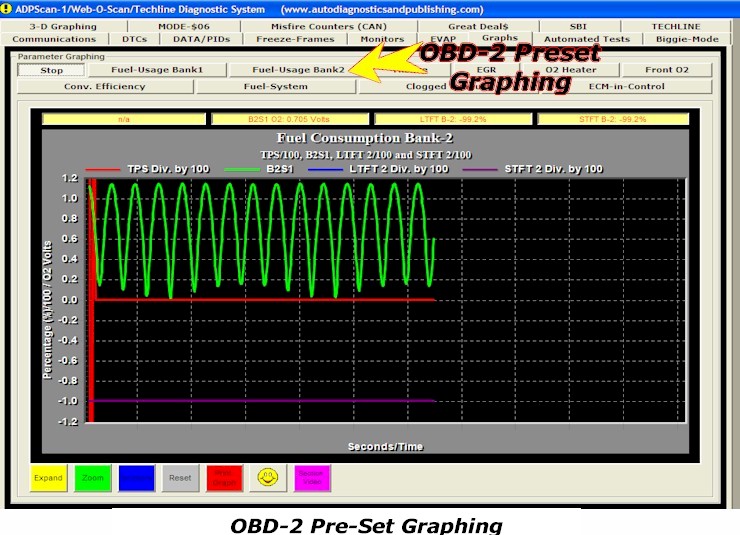

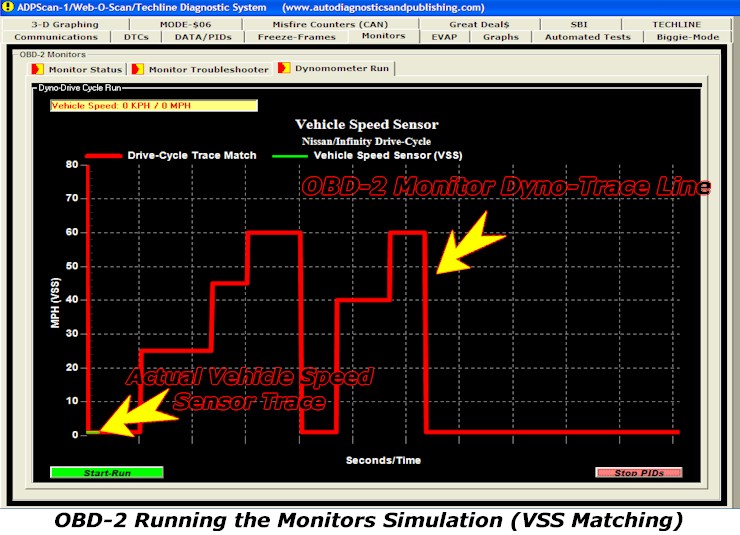

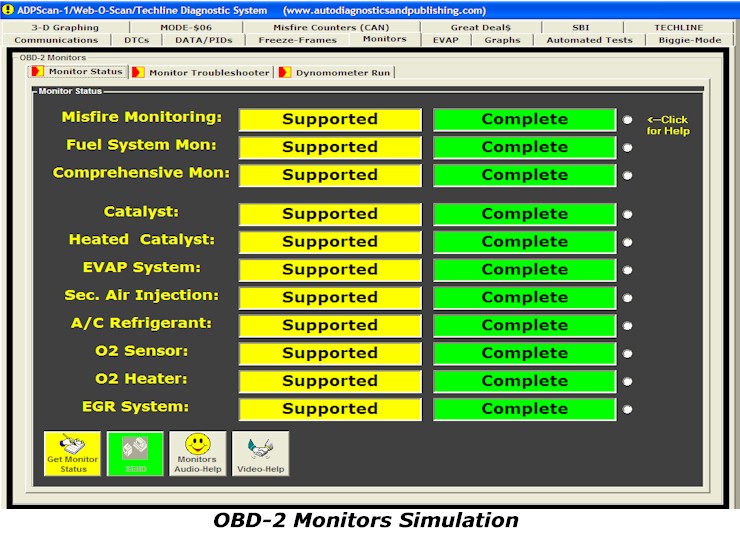

obd2_monitors_screenshotobd2_PID_Data_screenshotobd2_Preset_Graphing_screenshotobd2_running_monitors_screenshotobd2_scanner_screenshot
